Most Common Replacement Parts for Freightliner FL70

Freightliner FL70/FL80 Business Class trucks see a lot of wear and tear while running job sites. The parts that risk quick replacement are those that see the most pressure and stress, like the suspension, drivetrain, or HVAC system.

Here are the most common FL70 replacement parts drivers need, why they fail, and which symptoms to watch for before small problems turn into expensive downtime.

The Freightliner FL70 Truck Model Explained

The Freightliner FL70 is a medium-duty (Class 6-7) vocational truck that was rolled out as part of Freightliner’s Business Class series which came out between 1991 to 2007 before being replaced by the Freightliner M2.

FL70 models come in day cab, extended cab, and crew cab configurations which are commonly used for dump trucks, tankers, and construction or agricultural hauling.

Vocational trucks like the FL70 often endure stop-and-go driving, extensive idling, and – sometimes – uneven terrain on work sites. This type of work puts burden on the chassis and powertrain.

How Vocational Use Wears Down Freightliner Business Class Parts

Torsion/Twisting

Flatbeds, dump trucks and utility booms usually have asymmetrical loads on them. On uneven gravel or dirt roads the C-channel frame rails and cross members experience torsion. If the suspension can’t articulate enough to absorb the rough terrain, the frame takes the torque.

Parts that are impacted by torsion/twisting:

• Leaf springs
• Shackle pins and bushings
• Spring hangers
• U-bolts
• Shock absorbers
• Crossmembers
• Frame brackets
• Cab mounts
• Kingpins
• Tie rod ends
• Drag links
• Steering gear components
• Suspension bushings

Thermal Stress

The Power Take-off unit (PTO) is used constantly. Being idle means no “ram air” is moving through the radiator to cool the engine this forces the engine fan to run constantly.

Modern diesel exhaust systems (EGR and DPF) rely on high exhaust temps to burn off soot (AKA regen process). But prolonged idling won’t generate enough heat, which leads to carbon buildup.

FL70 truck parts that are impacted by thermal stress:

• Fan clutches
• Radiators
• Coolant hoses
• Thermostats
• Water pumps
• Belt tensioners
• Idler pulleys
• Serpentine belts
• EGR valves
• DPF components
• Exhaust sensors
• Turbochargers
• Charge air cooler boots
• Heater control valves

The Shocks (Drivetrain)

Working with massive payloads and starting from dead stops to an active acceleration there’s a sudden massive torque spike (shock load) that travels from the flywheel through the driveline.

Imagine a dump truck pulling out of a quarry to tow truck winching a heavy-duty vehicle. Over time, it puts wear and tear on the components.

Parts that are impacted by heavy payloads and uneven terrain:

• U-joints
• Carrier bearings
• Driveshaft yokes
• Clutch kits
• Flywheels
• Torque converters
• Transmission mounts
• Differential components
• PTO gears
• PTO shafts
• PTO seals
• Axle shafts
• Brake chambers
• S-cams
• Slack adjusters

The Most Frequently Replaced FL70 Components

Ghost Instrument Cluster Issues. It’s important to power wash the truck for a deep clean. The hard chemicals that are on the road will slowly seep into your system and impact your electrical gauge, leading to ghost instrument cluster failures.

Alternators and Ground Cables. Drivers will frequently replace batteries and alternators needlessly because the dashboard voltage gauge drops. The culprit is usually positive alternator lead and main chassis ground straps. Because ground cable bolts directly to the rail, they’re exposed to road salt and moisture.

FL70 HVAC Parts

Control Panel: connect to the manual cables via fragile plastic gears on the backside of the dash. When the knob is turned too hard, the plastic teeth strip away. A replacement is needed.

Heater Control Valve: located on the driver-side firewall, this plastic valve rarely closes all the way due to the hot coolant moving through the heater core. Drivers usually must replace these or bypass them with manual brass ball valves in the summer.

Common Symptoms:

• HVAC knobs spin freely or feel loose
• Temperature control does not respond
• Air stays hot even when set to cold
• Weak or inconsistent defrost performance
• Vent selector does not change airflow direction
• Heater valve leaks or sticks open
• Coolant smell near the firewall or inside the cab

FL70 Engine & Emissions Parts

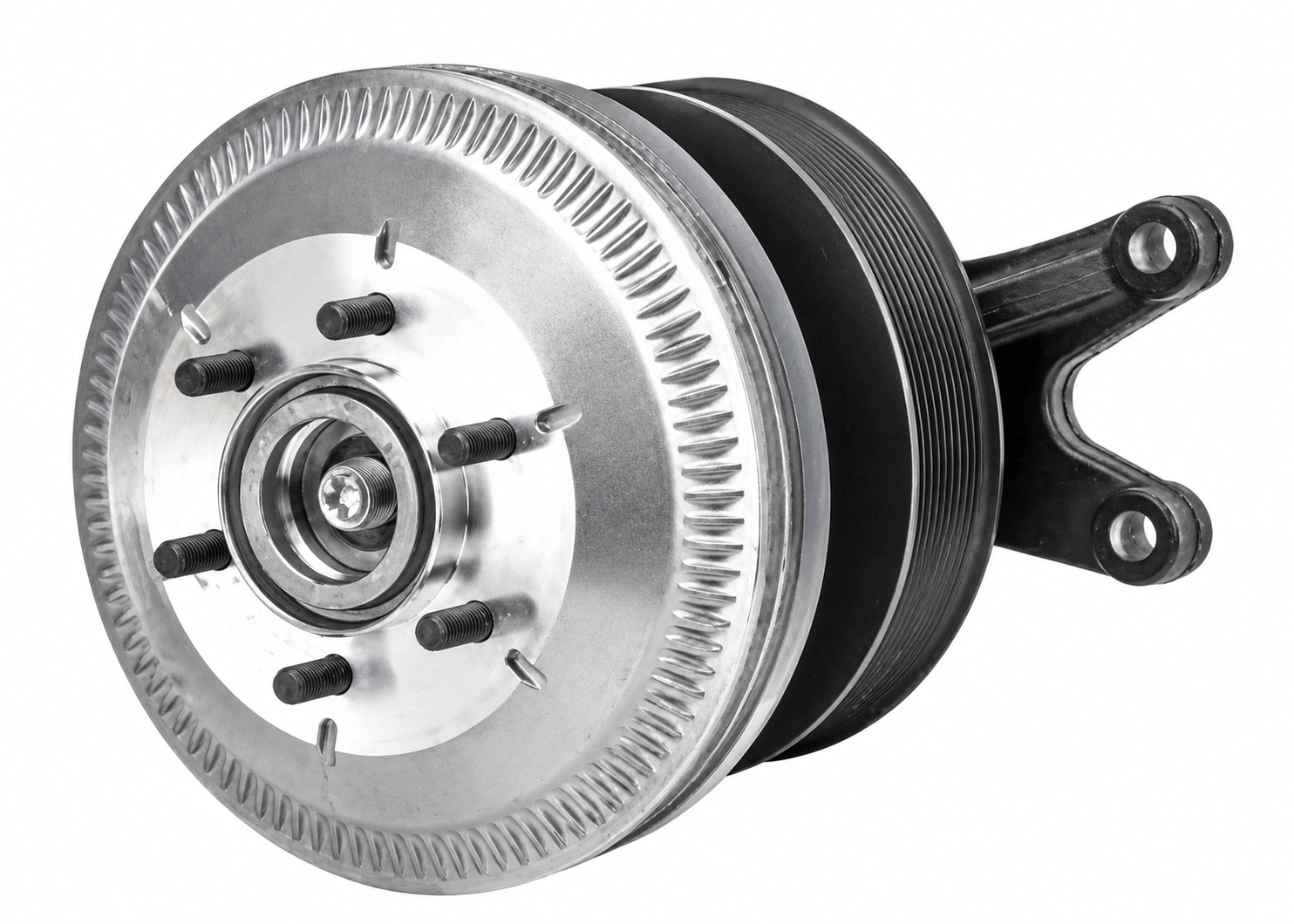

Fan Clutches: Because the truck idles heavily or runs at low speeds, the cooling fan engages far more frequently to pull air through the radiator.

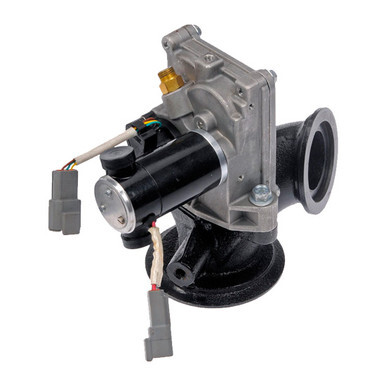

DPF (Diesel Particulate Filter) & EGR Valves: On models built after 2004, high idle times cause these systems to clog with soot rapidly, requiring frequent forced "active regeneration" or manual cleaning.

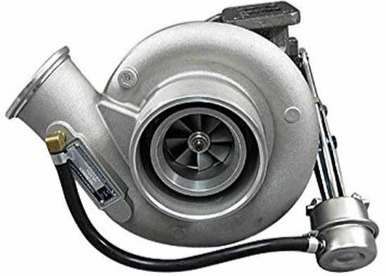

Turbochargers: The constant heat cycling from heavy acceleration followed by abrupt stops or idling causes thermal fatigue on the turbo housing and bearings.

RELATED POST: Signs your turbocharger is failing.

Common Symptoms:

• Engine runs hot while idling or driving at low speeds
• Cooling fan stays engaged longer than normal
• Loud fan noise from frequent fan clutch engagement
• Rising coolant temperature during PTO operation
• Loss of power under load
• Frequent forced regeneration cycles
• Check engine light or emissions warning light
• Rough idle caused by soot buildup
• Poor throttle response
• Excessive exhaust smoke
• Increased fuel consumption
• DPF restriction warnings
• EGR valve sticking, clogging, or failing
• Truck enters derate mode due to emissions faults
• Higher exhaust temperatures during active regeneration

FL70 Drivetrain Parts

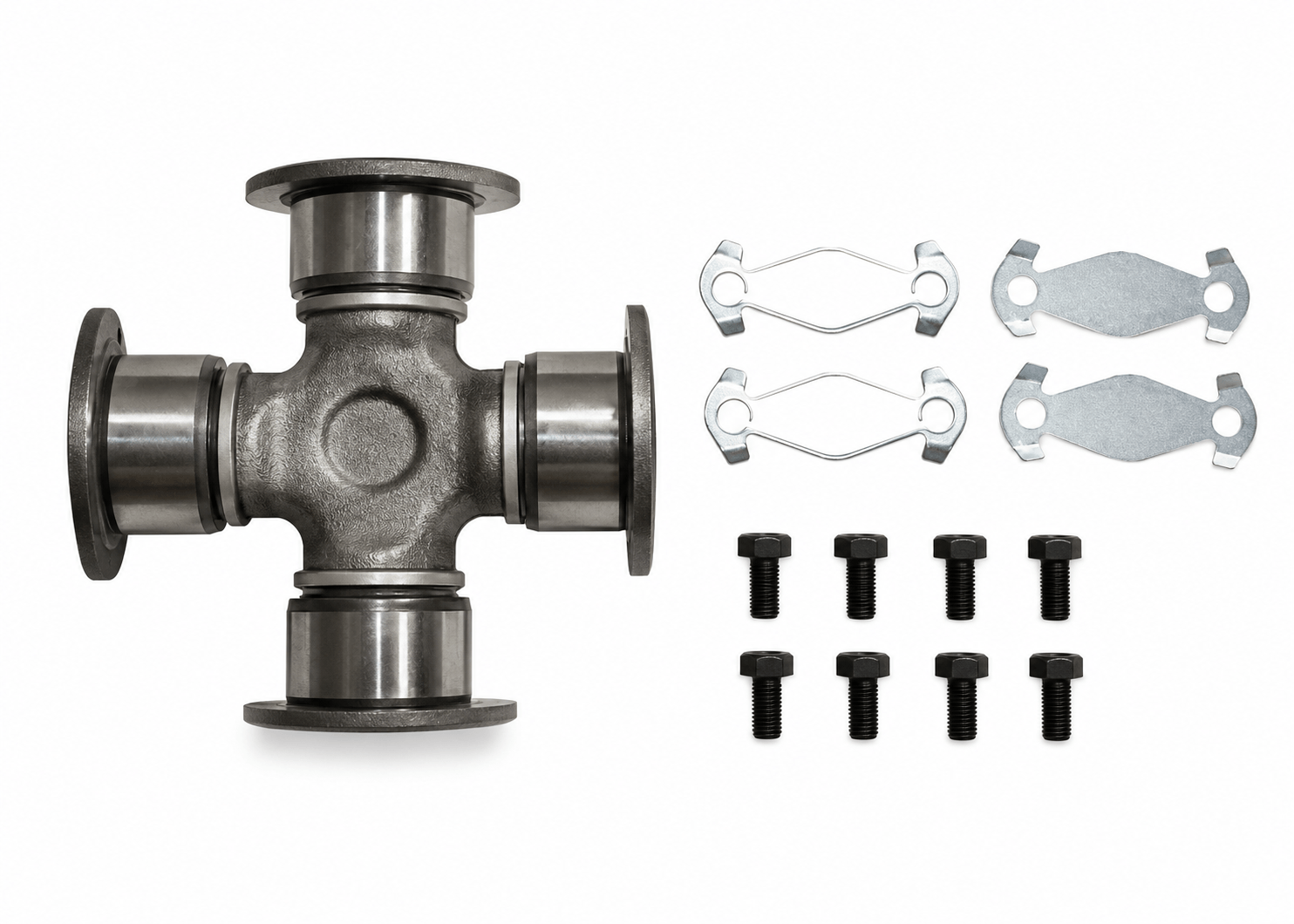

U-Joints and Carrier Bearings: The constant start-and-stop shock loading, combined with the extreme torque of pulling heavy localized loads (like a tanker or a towed vehicle), accelerates wear on the driveshaft components.

Clutches (Manual) / Torque Converters (Automatic): Navigating job sites at low speeds requires a lot of clutch slipping. The FL70 can have either a manual or automated transmission or a fully automatic transmission which uses the torque converter.

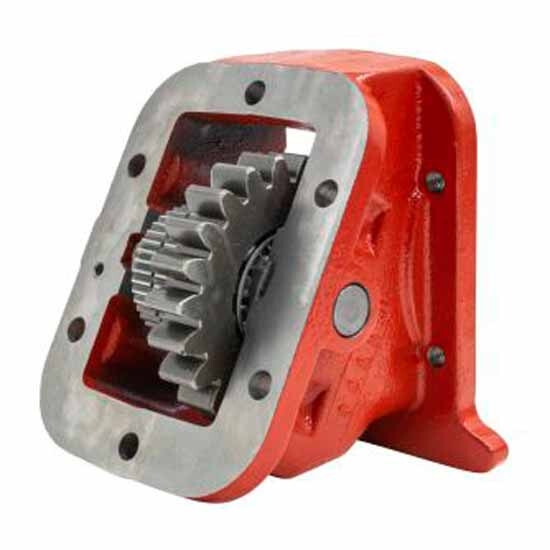

PTO Gears: If the truck utilizes a PTO for a hydraulic pump, the meshing gears in the PTO and transmission take specialized wear.

Common Symptoms:

• Clunking when shifting into gear
• Driveline vibration under acceleration
• Shuddering when starting from a stop
• Grinding or whining from the PTO
• Slipping clutch under load
• Burning clutch smell
• Delayed engagement in automatic models
• Rough or jerky low-speed movement
• Excessive driveshaft play
• Squeaking or knocking from U-joints
• Transmission or PTO fluid leaks
• Loss of hydraulic function from worn PTO components

FL70 Chassis, Suspension, and Steering Parts

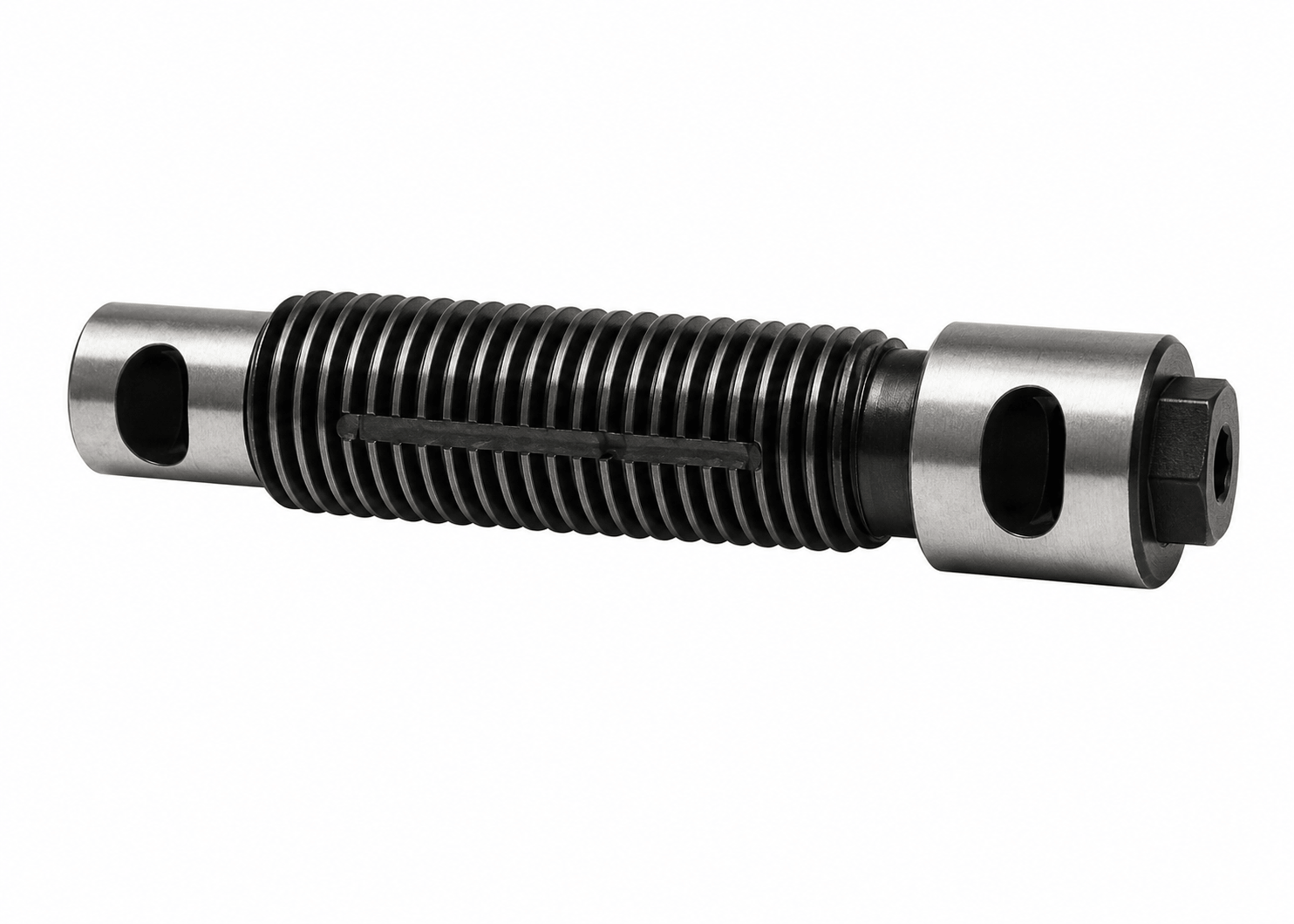

Leaf Springs and Shackle Pins: Heavily stressed by both heavy payloads and the torsional twisting of uneven terrain.

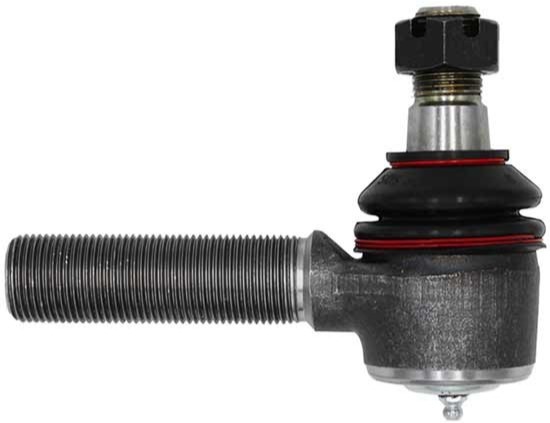

Kingpins and Tie Rod Ends: Vocational trucks do a lot of "dry steering" (turning the wheel while stopped or barely moving) to maneuver into tight job sites or loading docks. This puts immense strain on the steering knuckles and kingpins.

Brakes (Rotors, Drums, Shoes): Stop-and-go driving means the brakes are doing exponentially more work per mile than a highway truck.

Common Symptoms:

• Truck leans to one side
• Clunking or squeaking over bumps
• Loose or wandering steering
• Excessive steering wheel play
• Uneven front tire wear
• Hard steering at low speeds
• Brake squeal, grinding, or vibration
• Longer stopping distance
• Brake pull to one side
• Cracked leaf springs or worn shackle bushings

FL70 Powertrain & Air System Parts

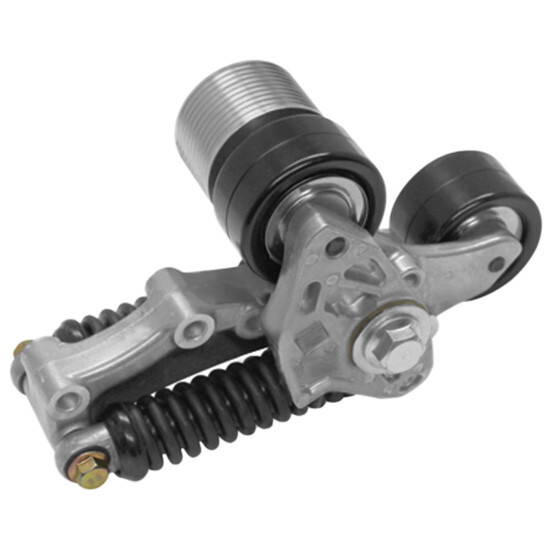

Belt Tensioners & Idler Pulleys: automatic serpentine belt tensioners weaken over time and usually get swapped out to prevent the worn-out belt form snapping and rendering the power steering useless.

Fuel shutoff solenoids: for Cummins and older CAT setups, the fuel shut off solenoid can fail which means the truck won’t turn off or on with the key.

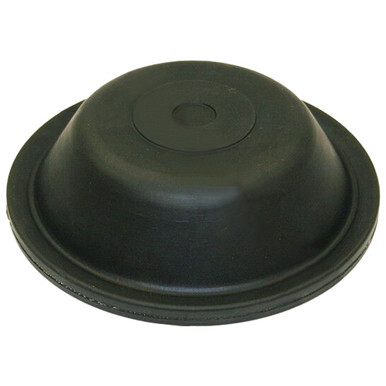

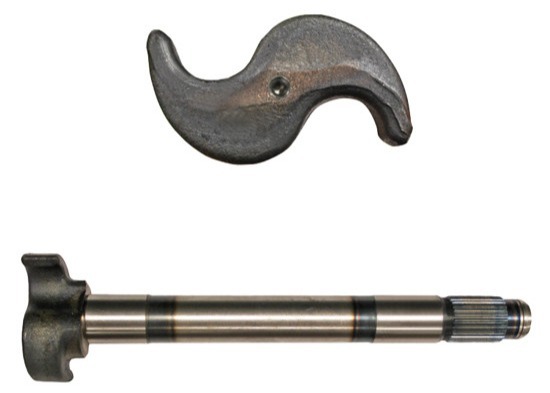

Air brake chambers & S-Cams: due to the nature of stop-and-go job-site work, the rear brake chambers are prone to internal spring failures and air diaphragm leaks.

Common Symptoms:

• Squealing or chirping belt noise
• Wobbling belt tensioner or pulley
• Power steering loss from belt failure
• Battery warning light from belt slippage
• Engine will not start with the key
• Engine will not shut off with the key
• Clicking or sticking fuel shutoff solenoid
• Slow air pressure buildup
• Air pressure drops while parked
• Hissing air leaks near brake chambers
• Weak or uneven brake application
• Rear brakes dragging or failing to release
• Excessive brake travel
• Worn or seized S-cam movement
