Description

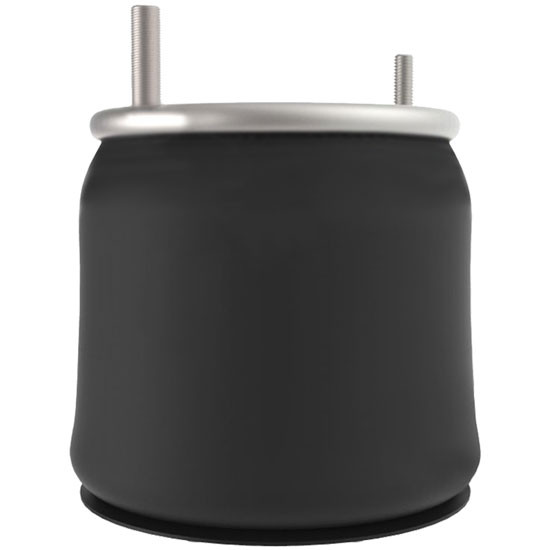

Kenworth Air Spring Rolling Lobe Replaces 9422, 1R11-028, 64255
This Air Spring is engineered to meet OEM specifications, providing a smooth ride for both driver and cargo. Its features include cost-effective design, a plastic base for optimized weight and cost savings, and resistance to oil, lubricants, and adverse weather conditions.
* High Quality Air Spring Rolling Lobe* Plastic Base
* Design Height-8 Inch
* Top Plate Hole/ Stud Qty- 2
* Top Plate Diameter- 9.00 Inch
* Top Plate C To C Diameter- 6.20 Inch
* Bottom Plate Hole/ Stud Qty- 2
* Bottom Plate Diameter- 9.53 Inch
* Bottom Plate C To C Diameter- 4.09 Inch
* Minimum Height- 3.9 Inch
* Maximum Height- 14.40 Inch
* Max Diameter- 11.40 Inch
* Load At 80 PSI- 5100 Lbs.
* Load At 100 PSI- 6400 Lbs.
* CPM- 80
* Made In USA
* Sold Individually
* Warranty On Air Spring Rolling Lobes Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)**** Replaces OE Numbers 64255, 9422, W013589422, W01-358-9422, 1R11028, And 1R11-028
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
Fitment
* Fits Kenworth K100C 1968 thru 1983
* Fits Kenworth K100 Cabover 1980 thru 1984
* Fits Kenworth K100E 1985 thru 1992
* Fits Kenworth T300 1995 thru 2007
* Fits Kenworth T450 1993 thru 1994
* Fits Kenworth T600 1986 thru 1990
* Fits Kenworth T600 Aerocab 1994 thru 1994
* Fits Kenworth T600B 1990 thru 1994
* Fits Kenworth T800 1986 thru 1994
* Fits Kenworth T800 Curved Glass 1993 thru 1994
* Fits Kenworth W900A 1980 thru 1982
* Fits Kenworth W900B 1983 thru 1994
* Fits Kenworth W900B Aerocab 1994 thru 1994
* Fits Kenworth W900L 1990 thru 1994
* Fits Kenworth W900L Aerocab 1994 thru 1994
Additional Information
Truck Class: |
Heavy Duty |
Material Options: |
Plastic/Poly |
Make: |
Kenworth |
Product Type: |
Frame & Chassis |
