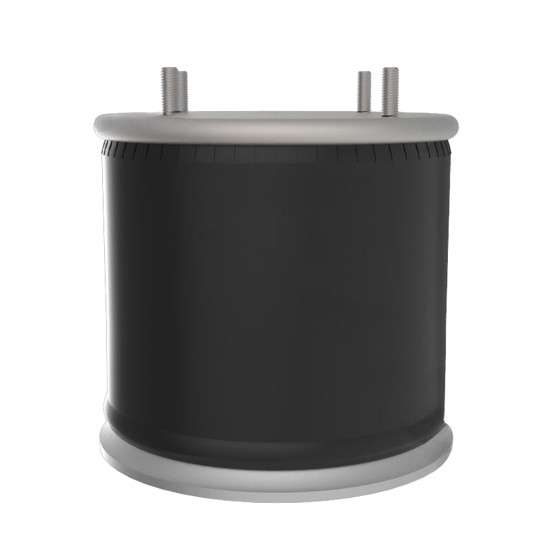

Rolling Lobe Air Spring W/ Aluminum Base For Hendrickson Trailer & Ridewell Suspension
* High Quality Air Spring* Automann Phoenix Brand
* Rolling Lobe
* Load At 80 PSI - 8000 Lbs
* Load At 100 PSI - 10,000 Lbs
* Natural Frequency 88 CPM (Cycles Per Minute)
* Includes:
- (5) Top Plate Holes
- (4) Bottom Plate Holes
- Internal Bumper
* Resistant To Oil, Lubricants, And Adverse Weather Conditions
* Mounting Brackets Not Included
* Aluminum Base
* 10.00 Inch Design Height
* Top Plate
- 11.31 Inch Outer Diameter
- 6.25 Inch Center To Center Diameter
* Bottom Plate
- 11.50 Inch Outer Diameter
- 7.87 Inch Center To Center Diameter
* 5.70 Inch Minimum Height
* 18.00 Inch Maximum Height
* 13.80 Inch Maximum Diameter
* Sold Individually
* Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase
* Cross Ref Numbers 9200, 1R14-038, 64253, S3839, AS0082
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
* Please Verify Mounting Hole Pattern, Some Year Models Can Have Multiple Offerings.
Fitment
** Fits Trailers W/ Hendrickson Suspension
** Fits Makes & Models of Trucks W/ Ridewell Suspension
