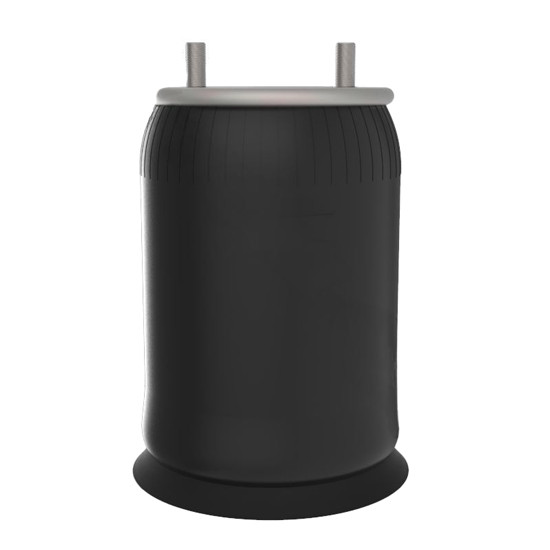

Air Spring Rolling Lobe For Hendrickson Trailer Suspension

* High Quality Air Spring
* Automann Phoenix Brand
* Rolling Lobe
* Load At 80 PSI - 5500 Lbs
* Load At 100 PSI - 7000 Lbs
* Natural Frequency 61 CPM (Cycles Per Minute)
* Includes:
 - (2) Top Plate Holes
 - (1) Bottom Plate Holes
 - Bumper
* Resistant To Oil, Lubricants, And Adverse Weather Conditions
* Mounting Brackets Not Included
* Plastic Base
* 15.00 Inch Design Height
* Top Plate
 - 9 Inch Outer Diameter
 - 5.50 Inch Center To Center Diameter
* Bottom Plate
 - 10.28 Inch Outer Diameter
* 7.30 Inch Minimum Height
* 24.80 Inch Maximum Height
* 13.30 Inch Maximum Diameter
* Sold Individually
* Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase

* Cross Ref Numbers 64694. 910BP-20P738. 9646. W013589646. W01-358-9646. W014559646. W01-455-9646. S23611. S-23611

** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **

* Please Verify Mounting Hole Pattern, Some Year Models Can Have Multiple Offerings.
