Description

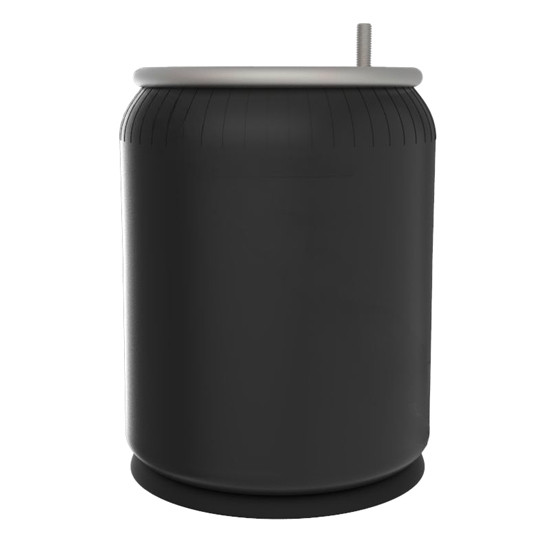

Replacement Air Spring Rolling Lobe
* High Quality Air Spring* Rolling Lobe Type
* Bumper: Yes
* Top Bracket: Yes
* 5900 Lb Load At 80 PSI
* 7500 Lb Load At 100 PSI
* 57 CPM Natural Frequency
* Top Plate:
- 9.00 Inch Diameter
- (2) Hole/Stud
- 5.50 Inch Center To Center
* Bottom Plate:
- Plastic
- 10.28 Inch Diameter
- (1) Hole/Stud
- 10.00 Inch Center To Center
* Dimensions:
- 12.50 Inch Design Height
- 6.60 Inch Min Height
- 23.10 Inch Max Height
- 12.60 Inch Max Diameter
* Made In USA
* Sold Individually
* Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)**** Replaces OE Numbers 64413, 69659, 9 10-18.5 P 550, 9647, W013589647, W01-358-9647, W014559647, W01-455-9647, 58786002, 58786-002, 587862, 58786-2, 64917002, 64917-002, 64917002L, 64917-002L, 21561909, 25161909, And 57Ql417M
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
* Please Verify Mounting Hole Pattern, Some Year Models Can Have Multiple Offerings.
Fitment
* Fits Mack CH Model SBA 1987 thru 2004
* Fits Mack CH Model SFA 1987 thru 2004
* Fits Mack CHN613 SFA 2004 thru 2007
* Fits Mack CHU613 SFA 2008 thru 2020
* Fits Mack CV713 Granite 2003 thru 2007
* Fits Mack GU713 2008 thru 2024
* Fits Mack GU813 2008 thru Current
* Fits Mack CX613 2000 thru 2004
* Fits Mack CXN613 Vision 2004 thru 2007
* Fits Mack CXU613 Pinnacle 2008 thru 2018
* Fits Mack R Model 1973 thru 1989
* Fits Mack RD Model 1973 thru 2003
* Fits Mack RW Superliner 1984 thru 1993
Additional Information
Product Type: |
Frame & Chassis |
Truck Class: |
Heavy Duty |
Make: |
Mack |
Style Options: |
Rolling Lobe |
