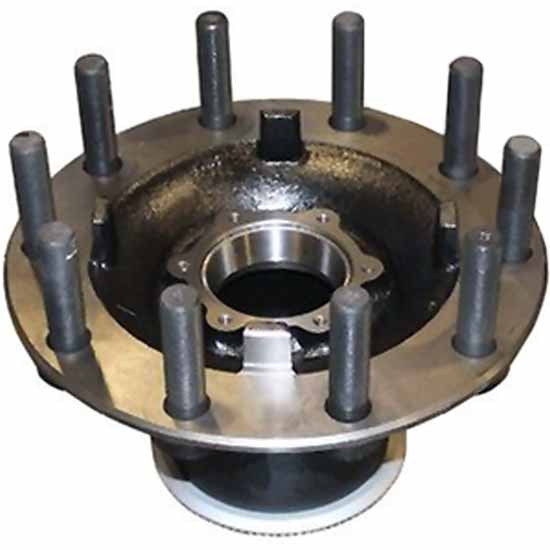

Hub-Pilot Steer Hub Assembly With Bearing Cups And Wheel Studs For Aluminum Wheels

Upgrade your ride with the Cast Hub-Pilot Steer Hub Assembly! This durable assembly is designed for outboard brake drums and features a pilot diameter of 8.780 inches and an overall height of 6.26 inches. It includes wheel studs, perfect for aluminum wheels, and has an easy mounting setup with a 4.50-inch bolt circle. Just remember, bearings are sold separately.

* High Quality Cast Hub-Pilot Steer Hub Assembly
* Comes With Bearing Cups-Races
  - Inner Race HM212011
  - Outer Race 3720
* Bearings Not Included - Sold Separately
* Distance Between Cups 3.380 Inch
* Bolt Circle Diameter 11.250 Inch
* Pilot Diameter 8.780 Inch
* Overall Height 6.26 Inch
* 10 Hole Hub, Includes Wheel Studs
* Designed For Outboard Brake Drums
* With ABS Ring
 * For Hub Pilot Applications Using Aluminum Wheels
* Oiler Hubcap Mounting, 4.50 Inch Bolt Circle With 6 5/16-18 Inch Bolt Holes
* Sold Individually
* Warranty On Cast Hub-Pilot Steer Hub Assemblies Against Defects In Workmanship & Material From Date Of Purchase

***High Quality Aftermarket Replacement Part (Not OEM)***

Replaces Hub Numbers 252013T, 1502520S1, 20422511, 20354737, TWD252013T, 25201-3T
