Description

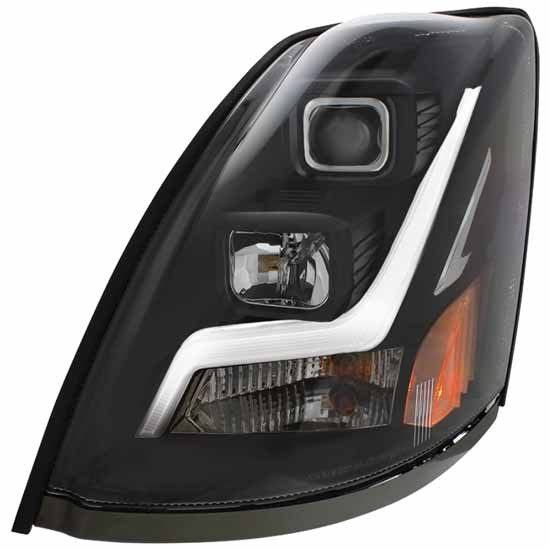

Projection Headlight With White LED Position Light Bar
Beginning with a functional update for Volvo trucks, the blackout projection headlight with LED position light bar is designed to fit Volvo VNL Gen II models from 2004 through 2018 and is sold individually by side so you can replace the driver or passenger. This assembly combines a polycarbonate lens and blackout housing with an integrated white LED position light bar, and it accepts standard H7 low-beam and H1 high-beam bulbs while also using a 3157 bulb for additional lamp functions, all meeting DOT/SAE and FMVSS 108 requirements for on-road lighting.
Manufactured as a high-quality aftermarket replacement (not OEM), this headlight carries a warranty against defects in workmanship and materials from the date of purchase, giving practical assurance in its build without overstating performance claims.
The blackout finish and LED position light bar contribute to a cohesive exterior look on compatible Volvo trucks, and the part's design aligns with original mounting locations to help support a straightforward installation using the existing wiring harness.
With clear fitment details and documented specifications, this projection headlight assembly provides a factual, friendly option for owners refreshing their VNL lighting components.
Fitment
* Fits Volvo VNL Gen II 2004 thru 2018
Projection Headlight W/ White LED Position Light Bar
* High Quality Head Light Assembly* Driver Side
* DOT/SAE Approved
* Technical Specifications
* Low Beam
- H7 Bulb
- 12V DC Input
- 4.58 Amps / 55 Watt
- FMVSS 571.108
* High Beam
- H1 Bulb
- 12V DC Input
- 4.58 Amps / 55 Watt
- FMVSS 571.108
- 3157 Light Bulb
* Sold Individually
* Warranty On Headlights Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)**** Replaces OE Numbers:
- Driver Side 20359833 20496653 20817107 20835984 82329124 82329590 949000
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
Projection Headlight W/ White LED Position Light Bar
* High Quality Head Light Assembly* Passenger Side
* Available Black Item Number 13-1606030 And 13-1606031
* DOT/SAE Approved
* Technical Specifications
* Low Beam
- H7 Bulb
- 12V DC Input
- 4.58 Amps / 55 Watt
- FMVSS 571.108
* High Beam
- H1 Bulb
- 12V DC Input
- 4.58 Amps / 55 Watt
- FMVSS 571.108
- 3157 Light Bulb
* Sold Individually
* Warranty On Headlights Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)**** Replaces OE Numbers:
- Passenger Side 20359834 20496654 20817108 20835985 82329127 82329592 949010
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
Additional Information
Truck Class: |
Heavy Duty |
Make: |
Volvo |
Material Options: |
Plastic/Poly |
Product Type: |
Lighting |
Availability: |
Ready To Ship |
