Semi Truck Exhaust Systems: Parts, Materials, Fitment & Repair Guide

How a Semi Truck Exhaust System Works

A heavy-duty exhaust system has three main jobs: route burned gases safely away from the engine and cab, control combustion noise, and maintain proper exhaust flow.

On a basic system, exhaust moves from the manifold or turbo outlet through connectors, pipes, flex sections, elbows, mufflers or aftertreatment equipment, and finally through the stack or tailpipe.

Those parts also have to survive engine movement, chassis vibration, road shock, heat expansion, moisture, and the weight of the exhaust system itself.

That makes exhaust repair more than replacing a pipe with a hole in it.

Why Exhaust Flow Matters

Diesel engines do not need arbitrary backpressure.

Every bend, pipe, muffler, reducer, adapter, and outlet creates some resistance to exhaust flow. The goal is to keep total restriction within the limits the engine and exhaust system were designed around.

Restriction increases when you have:

• Crushed or dented tubing
• Pipes that are too small
• Excessive pipe length
• Sharp or unnecessary bends
• Restrictive mufflers
• Poorly matched replacement parts
• Damaged aftertreatment components

Too much restriction contributes to horsepower loss, poorer fuel economy, higher engine and turbo temperatures, and increased component stress.

This is why replacement parts should match the original system closely.

A muffler might have the same outside dimensions and inlet diameter as the original while using a completely different internal design. Physical fit does not automatically mean equivalent exhaust flow.

Think of Exhaust Parts by What They Do

Instead of treating the exhaust as a collection of random pipes and hardware, look at the type of transition each part handles.

Each part has a specific job. Problems begin when one component starts doing the job of another.

Flex Pipe Absorbs Movement

Flex pipe allows parts of the exhaust system to move independently.

Engine vibration, thermal expansion, cab movement, and chassis flex would otherwise transfer directly into rigid pipes, clamps, welds, and brackets.

Flex pipe is not meant to serve as a bend or routing shortcut.

Install it straight and with enough available movement to absorb vibration and thermal growth. A flex section stretched tight has little movement left. A section compressed or bent incorrectly might also distort the pipe and surrounding connections.

If flex has cracked, unraveled, seized, or lost its ability to move, replace the section rather than patching it.

Flex Pipe Materials

Galvanized flex is the lower-cost option. It fits applications where price matters more than maximum temperature and corrosion resistance.

Aluminized flex gives you a middle-ground option with stronger heat and corrosion resistance.

Stainless flex works best where heat, moisture, corrosion, or expected service life justify the higher price.

Heat discoloration on stainless does not automatically indicate structural failure.

Cutting Flex Pipe

Flex tubing requires different cutting techniques than rigid exhaust pipe.

Mark your cut and tack-weld the convolutions on both sides of the cut line before cutting. This helps stop the wound tubing from twisting or unraveling.

Plasma cutting produces a clean cut with little deformation. A band saw or hacksaw also works, but the end will usually require more deburring and finishing.

Avoid crushing the ribs while cutting or installing the section. Changing the shape also changes its fit.

Exhaust Clamps Need to Match the Joint

There is no single clamp for every exhaust connection.

The clamp needs to match the diameter and geometry of the joint you are joining.

Common heavy-duty options include:

Wide-band clamps: Used on many overlapping, butt, and flex-to-solid connections. The wide surface distributes clamping force and helps seal the connection without heavily deforming the tubing.

Guillotine or U-bolt clamps: A common and economical fastening design used across many heavy-duty pipe diameters.

V-band clamps: Used with flared or flanged connections, especially around turbo, manifold, and other precision connections.

Flat-band clamps: Used across several solid-pipe and exhaust-component connections where broad clamping pressure is needed.

Do not choose the clamp based only on pipe diameter. Look at whether the connection is butt-fit, overlapping, flared, stepped, or flex-to-solid.

Clamps also deserve attention whenever you replace nearby exhaust parts. A heavily corroded or distorted clamp becomes another leak point after the new pipe goes in.

Hangers and Brackets Carry the Load

Clamps seal connections. Hangers and brackets support weight.

Confusing those two jobs creates problems.

A missing or broken hanger lets gravity pull the exhaust out of alignment. That movement transfers stress into nearby joints.

The failure often progresses like this:

1. A hanger or bracket fails.
2. The pipe starts to sag or vibrate.
3. Flanges and joints move out of alignment.
4. Flex pipe stretches farther than intended.
5. Clamps, gaskets, welds, or flex sections start failing.

This is why a leaking gasket or broken clamp is not always the original problem.

Look for what caused the joint to move.

Loose brackets, cracked mounts, weak stanchions, missing supports, or poor alignment might explain why the same connection keeps failing.

Mufflers and Resonators

The muffler controls exhaust noise while still allowing enough flow for proper engine operation.

When replacing one, compare more than overall size.

Check:

• Pipe diameter
• Inlet and outlet location
• Overall length
• Mounting position
• Flow direction, when specified
• Exhaust-flow requirements
• Mounting-band location

Inspect the surrounding pipe, clamps, brackets, and flex at the same time.

A failed muffler surrounded by heavily corroded hardware often turns into a larger repair once you start taking the system apart.

A resonator performs a narrower job. It targets certain sound frequencies rather than serving as the primary exhaust silencer.

Exhaust Material Options

Material affects corrosion resistance, service life, appearance, and price.

Aluminized Steel

Aluminized steel offers a practical middle ground between price and corrosion resistance.

It makes sense for replacement pipes, mufflers, and other components where you want solid service life without paying for stainless throughout the system.

Chromed Steel

Chromed steel gives exterior stacks and elbows the traditional mirror finish many owner-operators want.

The weakness sits inside the pipe.

Chrome protects the exterior surface, while the underlying steel remains susceptible to internal moisture and corrosion. A pipe might still look clean outside while rust develops inside the lower bends and joints.

Chromed steel fits trucks where appearance is a major priority and regular inspection and cleaning are already part of the maintenance routine.

Stainless Steel

Stainless steel offers much stronger resistance to moisture and internal corrosion.

It fits trucks exposed to frequent condensation, short operating cycles, heavy idling, weather, or other conditions where moisture stays inside the exhaust.

Repeated heat cycles discolor bare stainless. The brown or bronze appearance is largely an appearance issue rather than the same type of deterioration as steel rusting through.

Chromed Stainless Steel

Chromed stainless combines the corrosion resistance of stainless steel with the traditional mirror finish of chrome.

This makes it a strong premium option for custom exhaust systems where service life and appearance both matter.

Water Is Hard on Vertical Exhaust Systems

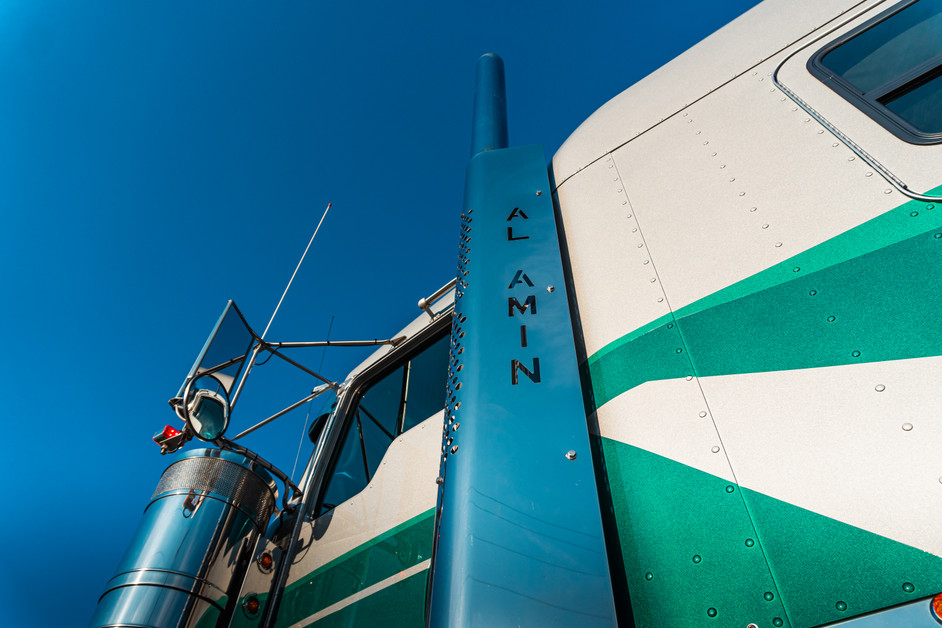

Straight vertical stacks give rain a direct path into the system.

Water moves down the stack and eventually reaches bends, joints, mufflers, or other low points where it collects.

That moisture contributes to internal corrosion.

A rain cap or properly designed curved outlet reduces water entry. A rain cap is still a shield, not a watertight seal. High-pressure washing and wind-driven water might still get past it.

Pay extra attention to the lower bends and connections underneath polished vertical stacks. Those hidden sections often see more moisture than the parts you look at every day.

Vertical vs. Horizontal Exhaust

A vertical system sends exhaust upward through one or more stacks mounted around the cab or sleeper.

This gives you the traditional heavy-truck appearance and places the outlet high above much of the chassis.

A horizontal exhaust (underslug) is lighter and allows the tractor trailer to sit closer to ghether, reducing drag.

Cab and Sleeper Configuration Changes Exhaust Mounting

Unibilt Sleeper Mounts

A Peterbilt Unibilt sleeper uses brackets at both the bottom and top of the cab. The upper bracket also serves as an exhaust mount.

Factory day cabs do not use this same upper sleeper mount. Older non-Unibilt trucks also use different mounting arrangements.

Peterbilt 359 models were never built with the Unibilt system. Their exhaust systems require separate upper and lower mounting points.

Before ordering exhaust components, identify:

• Factory day cab or sleeper
• Unibilt or non-Unibilt cab
• Original sleeper or converted day cab
• Upper exhaust bracket design
• Single-stack or dual-stack configuration

These differences affect brackets, spools, elbows, stacks, and complete exhaust-kit fitment.

Inspect the Exhaust From the Turbo Up

Visible chrome or stainless stacks often look good while hidden exhaust components underneath have significant corrosion.

Start your inspection at the turbo and work upward through the exhaust system.

Check These Components First

Inspect:

• Turbo outlet connection
• Turbo pipe clamp
• Exhaust downpipe
• Pyrometer port area
• Elbows
• T-pipes
• Y-pipes
• Frame pipes
• Clamps
• Mounting brackets
• Upper stacks

Rainwater entering through the top of the exhaust stack often washes soot away from the inside of elbows and lower pipes. Soot normally provides some protection against internal corrosion.

Water also tends to collect around bends. For this reason, elbows and Y-pipe sections often rust before the visible vertical stacks.

Replace Individual Parts or the Complete System?

If only one or two components have failed, replace those components. There is little reason to discard exhaust parts still in good condition.

A complete exhaust kit starts making more sense once deterioration affects several areas.

For example:

• Clamps are brittle or loose.
• Elbows have rusted through.
• The Y-pipe has deteriorated.
• Frame pipes show heavy corrosion.
• Brackets no longer hold the system securely.
• Several joints require replacement at the same time.

At that point, replacing the main exhaust assembly and related mounting hardware often simplifies the repair.

Peterbilt Short-Hood Trucks Create Clearance Problems

Some short-hood Peterbilt configurations have hydraulic or diesel tanks positioned near the hood and front fenders instead of the more common step-box or battery-box arrangement.

Peterbilt 378 trucks frequently present this problem.

A tank near the cab door might occupy the same space where a standard exhaust elbow normally routes upward. A typical Peterbilt exhaust kit therefore might not fit.

These trucks often require a specialized elbow designed to route the exhaust around the tank.

This setup differs from both:

• A standard Peterbilt-style elbow
• A traditional long-drop Pickett-style elbow

Tank location, step placement, fender clearance, and cab configuration should all be checked before ordering an exhaust kit.

Factory Day Cabs and Converted Day Cabs Need Different Exhaust Parts

Exhaust kits do not fit every Peterbilt day cab the same way.

Sleeper Converted Into a Day Cab

A truck originally built as a sleeper often retains much of the exhaust geometry used by the sleeper configuration.

A standard exhaust kit often still fits, although additional upper brackets are usually required after removal of the sleeper and its Unibilt roof-cap structure.

Factory-Built Day Cab

Factory day cabs require closer inspection.

Their exhaust layout depends on how the truck was originally built. Configurations include:

• Rear-mounted stacks
• Single stacks
• Dual stacks
• Different upper mounting points
• Different pipe routing
• Specialized brackets

Photos of the cab, brackets, tanks, frame, and existing exhaust routing are often the safest way to identify replacement parts.

Vocational and Dump-Truck Conversions

A former highway tractor converted into a dump truck or other vocational configuration presents another fitment issue.

The dump body might interfere with the original exhaust-stack location. Specialized upper stacks, brackets, or rerouted piping might therefore be required to clear the body.

These builds need to be evaluated individually.

5. Peterbilt 359, 379, and 389 Parts Are Similar, But Not Identical

Several classic Peterbilt models share enough geometry for certain exhaust parts to interchange, but small differences still matter.

Peterbilt 359 vs. 379

The 359 and 379 share several exhaust components, but their original elbows are different.

The OE elbow geometry differs by roughly 3 degrees. Some owners interchange the elbows and adjust the installation, but the Y-pipes also differ between the two models.

For a direct-fit installation, verify the original configuration rather than assuming all 359 and 379 components interchange.

Peterbilt 379 vs. 389 Gliders

Peterbilt 379 trucks and some 389 gliders share enough structural similarities for several components to cross over.

Gliders require extra attention because the final configuration depends heavily on who assembled the truck.

For example, the top Unibilt exhaust bracket might sit:

• Upright
• Inverted

The bracket orientation determines which exhaust spool fits correctly.

Always inspect the upper bracket before ordering replacement parts for a glider.

Emissions-Era Peterbilts Use Different Exhaust Systems

A true emissions-era Peterbilt 389 equipped with aftertreatment uses a fundamentally different exhaust layout from older non-emissions trucks.

Modern systems might incorporate:

• Diesel particulate filters, DPF
• Selective catalytic reduction, SCR
• Additional sensors
• Aftertreatment piping
• Different mounting hardware
• Different exhaust routing

Exhaust layouts also changed throughout different emissions generations.

Early, middle, and later emissions-era trucks do not always share the same exhaust components because emissions technology and manufacturer packaging changed over time.

Model alone therefore does not always provide enough information to identify the correct exhaust system. Year, engine, emissions equipment, and original exhaust configuration also matter.

Custom Exhaust Builds Require More Than Different Stacks

Custom show-truck exhaust systems sometimes appear factory-made even though extensive fabrication sits underneath them.

The Peterbilt 386 provides a good example.

Long-drop 90-degree elbow configurations are difficult to install on a 386 because the factory body, fender, step-box, battery-box, and exhaust geometry were not designed around this style.

Davis Brothers developed a custom long-drop 386 configuration that looked close to a factory installation. Achieving the finished appearance required much more than installing new elbows.

The build involved work such as:

• Modifying fiberglass around the front fender
• Changing the fender extension
• Repositioning the step-box or battery box
• Adjusting exhaust mounting points
• Installing specialized brackets and hardware
• Aligning the stacks with the altered bodywork

At 4 State Trucks, we offer fender extensions designed to help move the step or tool box forward and provide room for long-drop Pickett-style elbows on a Peterbilt 386.

The fender extension solves only part of the fitment problem. A full custom 386 exhaust conversion still requires numerous supporting parts and substantial installation labor.

Truck owners will often see a Peterbilt 386 with long-drop exhaust stacks and assume it's as easy as ordering the parts and installing them. To make it fit, drivers need to invest in a ton of labor and extra parts.

That custom look is achievable, but only through coordinated changes to the exhaust, body, brackets, boxes, and mounting hardware.
