Description

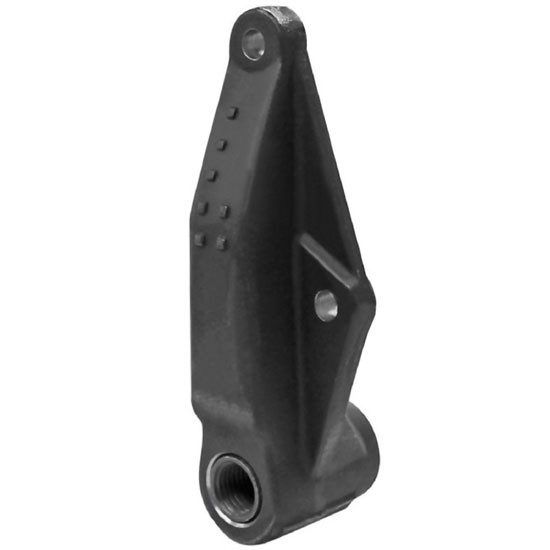

Spring Hanger For Rear Of Steer Axle For Paccar
Replace worn or damaged rear steer axle components on your Kenworth or Peterbilt with this Steer Axle Rear Spring Hanger, built with an MTB178 threaded bushing for reliable fitment. Made from high-quality cast material, it accommodates 4-inch wide springs and includes a TB-77 bushing for secure installation. With a 1.250-inch pin diameter and frame hole measurements of 3.940 inches C-to-C horizontal, 6.000 inches C-to-C vertical, and 0.625-inch diameter, this hanger guarantees precise alignment and professional-grade durability. Sold individually, it ensures dependable suspension support and long-lasting truck performance.
* High Quality Cast Spring Hanger* Casting Number B111033
* For Rear Of Steer Axle
* For 4 Inch Wide Spring
* 1.250 Inch Pin Diameter
* Includes 1 TB-77 Bushing
* Frame Holes 3.940 Inches C To C Horizontal
* Frame Holes 6.000 Inches C To C Vertical
* Frame Holes 0.625 Inch Diameter
* Sold Individually
* Warranty On Shackle Hangers Against Defects In Workmanship And Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
* Replaces OE Number B11-10345
Fitment
* Fits Kenworth C500 2004 thru 2010
* Fits Kenworth K100E 1985 thru 1992
* Fits Kenworth T600 1986 thru 1993
* Fits Kenworth T600 Aerocab 1994 thru 2004
* Fits Kenworth T600B 1990 thru 2004
* Fits Kenworth T800 1986 thru Current
* Fits Kenworth T800 Curved Glass 1993 thru 2004
* Fits Peterbilt 330 1995 thru 2005
* Fits Peterbilt 335 2005 thru 2010
* Fits Peterbilt 340 2007 thru 2010
* Fits Peterbilt 357 1987 thru 2007
* Fits Peterbilt 359 1982 thru 1986
* Fits Peterbilt 362 1982 thru 2000
* Fits Peterbilt 375 1989 thru 1995
* Fits Peterbilt 377 1988 thru 2000
* Fits Peterbilt 378 1988 thru 2007
* Fits Peterbilt 379 1987 thru 2007
* Fits Peterbilt 384 2007 thru 2010
* Fits Peterbilt 385 2000 thru 2007
* Fits Peterbilt 386 2006 thru 2010
* Fits Peterbilt 387 1999 thru 2010
* Fits Peterbilt 388 2008 thru 2010
* Fits Peterbilt 389 2008 thru 2010
* Fits Peterbilt 389 Glider 2008 thru 2010
** Fits Peterbilt 379 1987 thru 2007 119 BBC and 127 BBC **
Additional Information
Truck Class: |
Heavy Duty |
Position: |
Rear |
Make: |
Kenworth |
Make: |
Peterbilt |
Product Type: |
Frame & Chassis |
Availability: |
Ready To Ship |
