Description
Manifold Dash Control Module

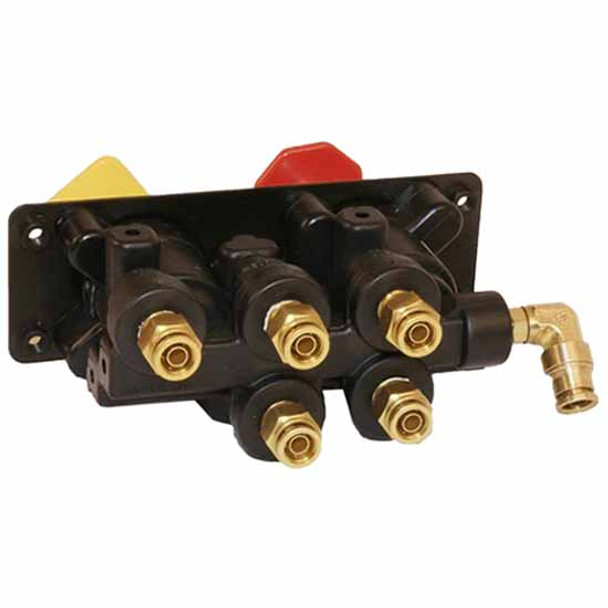

The MV-3 dashboard control module houses a two-button, push-pull control valve capable of accommodating dual circuit supply through a double check valve. It can duplicate the functions of any existing two- or three-valve push-pull system and offers the advantage of reduced plumbing. The valve body, plungers, and spools of the MV-3 are made from a non-metallic, non-corrosive material. Additionally, all air connections are located at the back of the valve, with the exception of the optional auxiliary port.
* High Quality Dash Control Module* MV3 Style
* OE Bendix Replacement
* With (6) 3/8 Inch Push Lock Connect Fittings
* 1/4 Inch - 20 Mounting Hole Thread
* Dimensions:
- 5.808 Inch Width
- 1.500 Inch Height
* Sold Individually
* Warranty On Dash Control Modules Against Defects In Workmanship & Material From Date Of Purchase
* Replaces OE Numbers K021464, K021782, K021821, 85112212
*** This Is An OEM Replacement Part/ Not Aftermarket***
** This Item Is Special Order. This Item Will Not Be Able To Be Canceled And Is Non-Returnable.
Additional Information
Truck Class: |
Heavy Duty |
Material Options: |
Plastic/Poly |
Make: |
Universal Items |
Product Type: |
Interior |
