Description

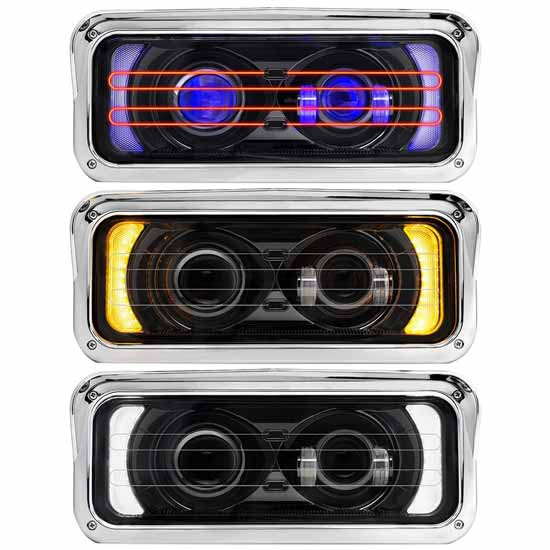

Upgrade your front-end with the Blackout LED Projector Headlight Assembly, designed for select Kenworth, Peterbilt, Freightliner Classic, and Western Star models. Featuring a sleek blackout finish, this aftermarket headlight combines projector-style LED lighting with a durable polycarbonate lens and ABS plastic housing. The assembly provides low- and high-beam output, with rated LED power of 11 watts for low beam and 28 watts for high beam, and operates on 9-30 volts. Additional features include a heated lens, chrome bezel with visor, and an optional blue backlit auxiliary function with independent wiring. The IP67 waterproof rating and DOT/SAE, FMVSS 108, and CMVSS 108 compliance make it a practical lighting replacement for compatible heavy-duty trucks. Available in driver- and passenger-side configurations, this headlight assembly is sold individually.
Fitment
* Fits Peterbilt 357 1987 thru 2007
* Fits Peterbilt 365 2007 thru 2023
* Fits Peterbilt 378 1988 thru 2007
* Fits Peterbilt 379 1987 thru 2007
* Fits Kenworth T600 1986 thru 1990
* Fits Kenworth T600 1994 thru 2007
** Aerocab
* Fits Kenworth T600B 1990 thru 2003
* Fits Kenworth T800 1986 thru 2026
* Fits Kenworth T800 Curved Glass 1993 thru 2026
* Fits Kenworth T800 Split Fender 1986 thru 2026
* Fits Kenworth W900A 1970 thru 1982
* Fits Kenworth W900B 1982 thru 2025
* Fits Kenworth W900B 1994 thru 2025
* Fits Kenworth W900L 1990 thru 2026
* Fits Kenworth W900L 1994 thru 2026
* Fits Kenworth W900S 1990 thru Current
* Fits Freightliner Classic 120 1990 thru 2010
* Fits Freightliner Classic XL 132 1990 thru 2010
* Fits Western Star 4900FA 2013 thru 2022
* Fits Western Star 4900SF 1990 thru 2007
Driver Side LED Projector Headlight Assembly W/ Bezel & Visors
* High Quality Projector Headlight Assembly* Dual Function
* Includes:
- White Glow Position (DRL Auxiliary)
- Amber Marker LED Accents
- Blue Backlit Auxiliary
- Chrome ABS Plastic Housing
- Black Housing Bucket
- Hardware
- Clear Polycarbonate Lens
- Chrome Plated Bezel With Visor
- (3) Bullet Plugs
- H4 Connectors With:
- 3 Prong For Low Beam
- 2 Prong For High Beam
* Blue Backlit Function Has An Independent Wire That Will Allow You To Turn It Off When Dring In Any Region Where Blue Is Not Permitted
* DOT SAE, FMVSS-108 CMVSS-108 Compliant
* Waterproof Rating IP67
* Power:
- LED Power Low 11 Watts/High 28 Watts
- Raw Lumens Low 3000/High 5000
- Effective Lumens Low 1200/High 2000
- Operating Voltage 9-30 Volts DRL Compatible
- Current Draw At 12.8V Low 0.87/High 2.5 AMPS
* Replaces OEM Double 4 X 6 Inch Headlight Configurations
* Driver Side
* Sold Individually
* Warranty On Projector Headlight Assemblies Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
Passenger Side LED Projector Headlight Assembly W/ Bezel & Visors
* High Quality Projector Headlight Assembly* Includes:
- Bezel
- Visor
* Polycarbonate
* Housing Material ABS Plastic
* Chrome Color
* Passenger Side
* With Blue Backlit Auxiliary
* Compliance DOT SAE, FMVSS-108 CMVSS-108
* LED Power Low 11 Watts/High 28 Watts
* Raw Lumens Low 3000/High 5000
* Effective Lumens Low 1200/High 2000
* Operating Voltage 9-30 Volts DRL Compatible
* Current Draw At 12.8V Low 0.87/High 2.5 AMPS
* Waterproof Rating IP67
* H4 Connectors With
- 3 Prong For Low Beam
- 2 Prong For High Beam
* Bullet Plugs (Included)
* Sold Individually
* Warranty On Projector Headlight Assemblies Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
Driver Side LED Projector Headlight Assembly W/ Bezel, Visor & Heated Lens
* High Quality Projector Headlight Assembly* Includes:
- Bezel
- Visor
* Polycarbonate
* Housing Material ABS Plastic
* Chrome Color
* Driver Side
* With Blue Backlit Auxiliary
* Compliance DOT SAE, FMVSS-108 CMVSS-108
* LED Power Low 11 Watts/High 28 Watts
* Raw Lumens Low 3000/High 5000
* Effective Lumens Low 1200/High 2000
* Operating Voltage 9-30 Volts DRL Compatible
* Current Draw At 12.8V Low 0.87/High 2.5 AMPS
* Waterproof Rating IP67
* H4 Connectors With
- 3 Prong For Low Beam
- 2 Prong For High Beam
* Bullet Plugs (Included)
* Sold Individually
* Warranty On Projector Headlight Assemblies Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
Passenger Side LED Projector Headlight Assembly W/ Bezel, Visor & Heated Lens
* High Quality Projector Headlight Assembly* Dual Function
* Includes:
- White Glow Position (DRL Auxiliary)
- Amber Marker LED Accents
- Blue Backlit Auxiliary
- Chrome ABS Plastic Housing
- Housing Bucket
- Hardware
- Clear Polycarbonate Lens
- Chrome Plated Bezel With Visor
- Bullet Plugs
- H4 Connectors With:
- 3 Prong For Low Beam
- 2 Prong For High Beam
* Blue Backlit Function Has An Independent Wire That Will Allow You To Turn It Off When Dring In Any Region Where Blue Is Not Permitted
* DOT SAE, FMVSS-108 CMVSS-108 Compliant
* Waterproof Rating IP67
* Power:
- LED Power Low 11 Watts/High 28 Watts
- Raw Lumens Low 3000/High 5000
- Effective Lumens Low 1200/High 2000
- Operating Voltage 9-30 Volts DRL Compatible
- Current Draw At 12.8V Low 0.87/High 2.5 AMPS
* Replaces OEM Double 4 X 6 Inch Headlight Configurations
* Passenger Side
* Sold Individually
* Warranty On Projector Headlight Assemblies Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
Driver Side Blackout Universal LED Projector Headlight Assembly With Backlit Auxiliary And Housing Bucket
* High Quality Projector Headlight Assembly* Blackout
* Driver Side
* With Optional Blue Backlit Auxiliary
* Compliance DOT/SAE, FMVSS-108, And CMVSS-108
* LED Power: Low 11 Watts/ High 28 Watts
* Raw Lumens: Low 3000/ High 5000
* Effective Lumens: Low 1200/ High 2000
* Operating Voltage 9-30 Volts DRL Compatible
* Current Draw At 12.8V: Low 0.87 Amps/ High 2.5 Amps
* Includes Chrome Bezel With Visor
* Lens Material Polycarbonate
* Housing Material ABS Plastic
* Waterproof Rating IP67 Rating
* Blue Backlit Function Has An Independent Wire
* H4 Connectors With 3 Prong For Low Beam And A 2 Prong For High Beam
* Bullet Plugs For Position Light, Marker Light, And Back Lit Function
* Sold Individually
* Warranty On Projector Headlight Assemblies Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
Passenger Side Blackout Universal LED Projector Headlight Assembly With Backlit Auxiliary And Housing Bucket
* High Quality Projector Headlight Assembly* Blackout
* Passenger
* With Optional Blue Backlit Auxiliary
* Compliance DOT/SAE, FMVSS-108, And CMVSS-108
* LED Power: Low 11 Watts/ High 28 Watts
* Raw Lumens: Low 3000/ High 5000
* Effective Lumens: Low 1200/ High 2000
* Operating Voltage 9-30 Volts DRL Compatible
* Current Draw At 12.8V: Low 0.87 Amps/ High 2.5 Amps
* Includes Chrome Bezel With Visor
* Lens Material Polycarbonate
* Housing Material ABS Plastic
* Waterproof Rating IP67 Rating
* Blue Backlit Function Has An Independent Wire
* H4 Connectors With 3 Prong For Low Beam And A 2 Prong For High Beam
* Bullet Plugs For Position Light, Marker Light, And Back Lit Function
* Sold Individually
* Warranty On Projector Headlight Assemblies Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
Driver Side Blackout Heated LED Projector Headlight Assembly With Backlit Auxiliary And Housing Bucket
* High Quality Projector Headlight Assembly* Blackout
* Driver Side
* Heated
* With Optional Blue Backlit Auxiliary
* Compliance DOT/SAE, FMVSS-108, And CMVSS-108
* LED Power: Low 11 Watts/ High 28 Watts
* Raw Lumens: Low 3000/ High 5000
* Effective Lumens: Low 1200/ High 2000
* Operating Voltage 9-30 Volts DRL Compatible
* Current Draw At 12.8V: Low 0.87 Amps/ High 2.5 Amps
* Includes Chrome Bezel With Visor
* Lens Material Polycarbonate
* Housing Material ABS Plastic
* Waterproof Rating IP67 Rating
* Blue Backlit Function Has An Independent Wire
* H4 Connectors With 3 Prong For Low Beam And A 2 Prong For High Beam
* Bullet Plugs For Position Light, Marker Light, And Back Lit Function
* Sold Individually
* Warranty On Projector Headlight Assemblies Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
Passenger Side Blackout Heated LED Projector Headlight Assembly With Backlit Auxiliary And Housing Bucket
* High Quality Projector Headlight Assembly* Blackout
* Passenger
* Heated
* With Optional Blue Backlit Auxiliary
* Compliance DOT/SAE, FMVSS-108, And CMVSS-108
* LED Power: Low 11 Watts/ High 28 Watts
* Raw Lumens: Low 3000/ High 5000
* Effective Lumens: Low 1200/ High 2000
* Operating Voltage 9-30 Volts DRL Compatible
* Current Draw At 12.8V: Low 0.87 Amps/ High 2.5 Amps
* Includes Chrome Bezel With Visor
* Lens Material Polycarbonate
* Housing Material ABS Plastic
* Waterproof Rating IP67 Rating
* Blue Backlit Function Has An Independent Wire
* H4 Connectors With 3 Prong For Low Beam And A 2 Prong For High Beam
* Bullet Plugs For Position Light, Marker Light, And Back Lit Function
* Sold Individually
* Warranty On Projector Headlight Assemblies Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
Additional Information
Truck Class: |
Heavy Duty |
Material Options: |
Plastic/Poly |
Make: |
Kenworth |
Make: |
Peterbilt |
Make: |
Western Star |
Make: |
Freightliner |
Product Type: |
Lighting |
Ready To Ship: |
Yes |
