Description

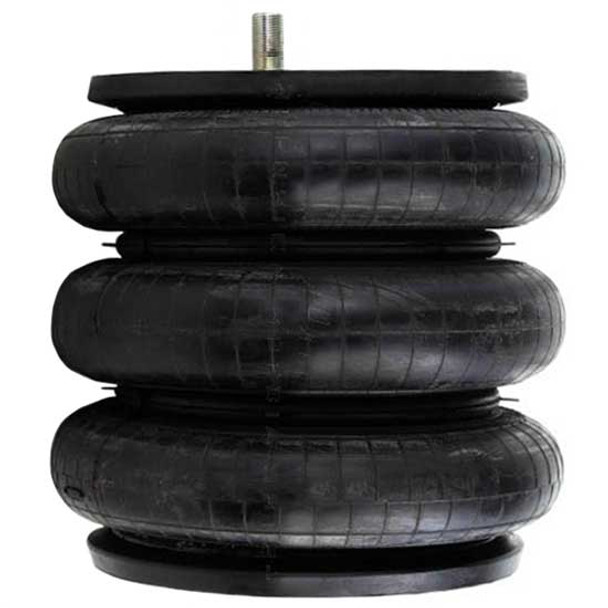

Triple Convoluted Air Spring By BESTfit
Keep your suspension smooth and stable with the BESTfit Triple Convoluted Air Spring. Capable of handling 5,400 lbs at 80 PSI and 6,800 lbs at 100 PSI, it features a 79 CPM natural frequency, plastic bottom plate, and built-in bumper for added protection. Precise top and bottom plate dimensions allow for secure installation. Sold individually, this air spring delivers reliable, heavy-duty suspension support mile after mile.
* High Quality Air Spring* Triple Convoluted
* 5400 Load At 80 PSI
* 6800 Load At 100 PSI
* 79 CPM Natural Frequency
* Plastic Bottom Plate
* With Bumper
* Dimensions:
- 12.00 Inch Design Height
- 4.60 Inch Minimum Height
- 18.90 Inch Maximum Height
- 12.80 Inch Maximum Diameter
* Top Plate:
- (2) Stud Holes
- 9.00 Inch Diameter
- 5.50 Inch Center To Center Diameter
* Bottom Plate:
- (2) Stud Hole
- 9.00 Inch Diameter
- 6.20 Inch Center To Center Diameter
* Brackets Not Included
* Sold Individually
* Warranty On Air Spring Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)**** Replaces OE Numbers 4431, 4469, W01-358-8008, W01-358-8025, 8030155, 57008008, 1003588008C, 3B12-300, AS0019, CS312300, FT330-29431, FT330-29469, SC2130,
** This Item Is Special Order. This Item Will Not Be Able To Be Canceled And Is Non-Returnable.
* Please Verify Mounting Hole Pattern, Some Year Models Can Have Multiple Offerings.
Additional Information
Truck Class: |
Heavy Duty |
Style Options: |
Triple Convolute |
Make: |
Trailer |
Product Type: |
Frame & Chassis |
