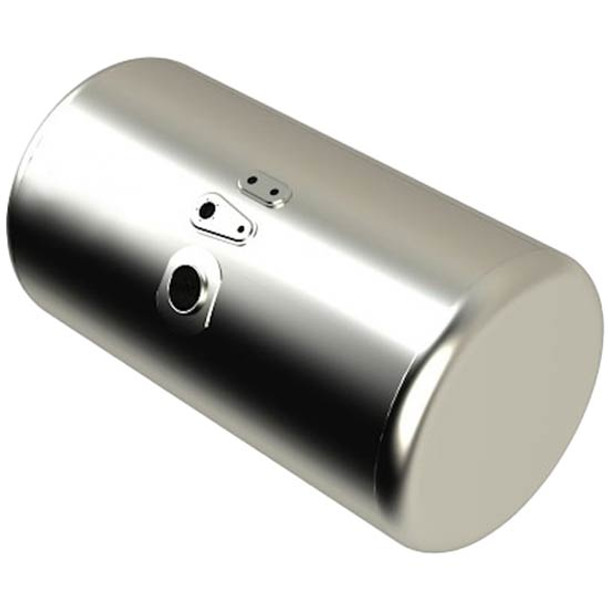

100 Gallon 26 X 48 Inch Aluminum Fuel Tank- Center Fill W/ New Style Manifold By BESTfit

Reinforce your Peterbilt's fuel system with the BESTfit Aluminum Fuel Tank 100 Gallon. Constructed from robust 11-gauge aluminum, this leak-resistant, welded center-fill tank includes a late-style manifold with built-in pickup and return tubes. With body dimensions of 43 inches seam-to-seam, 48 inches overall, and a 26-inch diameter, plus a center filler neck 24 inches from the rear weld seam, installation is straightforward. Pickup, return, and drain ports are optimized for efficiency. Sold individually, this tank is ideal for long-haul Peterbilt trucks.

* High Quality Fuel Tank
* Made Of 11 Gauge Aluminum
* 100 Gallon Capacity
* Center Fill
* Caps And Fittings Sold Separately
* Welded Seams To Prevent Leakage
* With Late Style Manifold
* Pickup And Return Tubes Built In To Tank
* CNC Laser Technology For Precision Cuts
* DOT Compliant

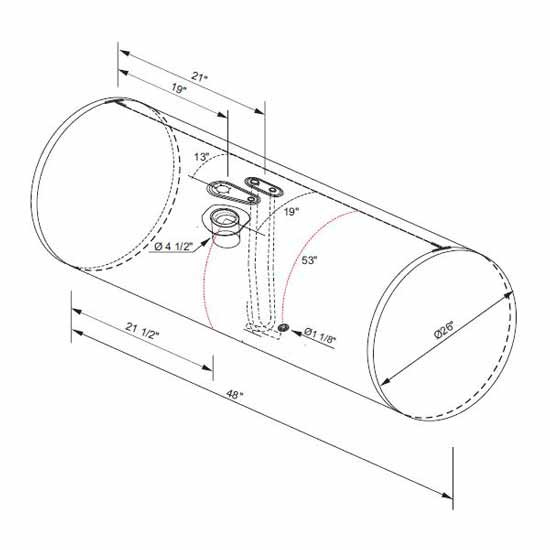

* Body Dimensions:
  - 43 Inch Length Seam To Seam
  - 48 Inch Over All Length
  - 26 Inch Diameter
* Center Filler Neck:
  - 24.00 Inches From Rear Weld Seam
  - 19.00 Inches Above Horizontal Weld Seam
* New Style Manifold With Sending Unit Hole:
  - 24.00 Inches From Rear Weld Seam
  - 13.00 Inches Above Horizontal Weld Seam
* Pickup And Return Ports:
  - 21.50 Inches From Front Weld Seam
  - 22.50 Inches Below Horizontal Weld Seam
* Drains Or Cross Overs:
  - 21.50 Inches From Front Weld Seam
  - 13.00 Inches Below Horizontal Weld Seam
* Sold Individually
* Warranty On Fuel Tanks Against Defects In Workmanship & Material From Date Of Purchase

*** High Quality Aftermarket Replacement Part (Not OEM) ***

** Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model
