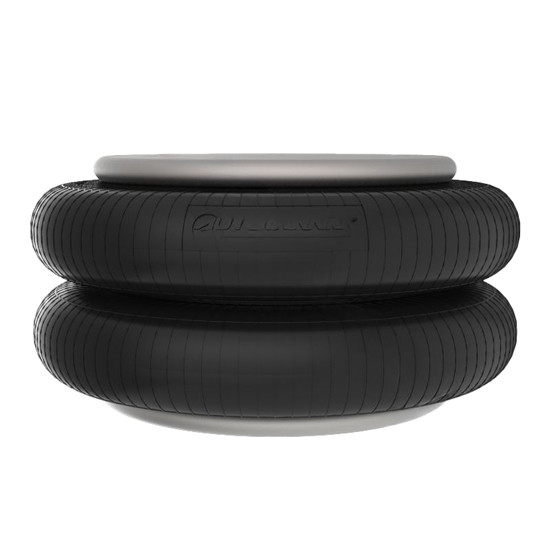

Double Convoluted Air Spring With Plastic Base & No Internal Bumper

Elevate your truck's suspension performance with this Double Convoluted Air Spring, compatible with Hendrickson and Reyco Granning systems. It supports 4,720 lbs at 80 PSI and 5,900 lbs at 100 PSI, while resisting oil, lubricants, and harsh weather. Sold individually, it ensures smooth, controlled rides and long-lasting durability for demanding road conditions.

* High Quality Air Spring
* Automann Phoenix Brand
* Double Convoluted
* Load At 80 PSI - 4720 Lbs
* Load At 100 PSI - 5900 Lbs
* Natural Frequency 102 CPM (Cycles Per Minute)
* Includes:
 - (3) Top Plate Holes
 - (2) Bottom Plate Holes
* Resistant To Oil, Lubricants, And Adverse Weather Conditions
* No Internal Bumper
* Plastic Base
* Rubber Lift Bags
* 9.50 Inch Design Height
* Top Plate
 - 9.00 Inch Outer Diameter
 - 6.20 Inch Center To Center Diameter
* Bottom Plate
 - 9.00 Inch Outer Diameter
 - 6.20 Inch Center To Center Diameter
* 3.10 Inch Minimum Height
* 12.50 Inch Maximum Height
* 12.80 Inch Maximum Diameter
* Sold Individually
* Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase

* Cross Ref Numbers 64493. FD33022363. W013587180. W01-358-7180. 2B12425. 2B12-425. 1685179C1. SC2075. 57007180. 7180. 055000001. 0550-00001. 1003587180C. AS2147180. AS-2147180

** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **

* Please Verify Mounting Hole Pattern, Some Year Models Can Have Multiple Offerings.
