Description
Bar Pin Assembly
This premium Bar Pin Assembly is a perfect replacement for Hendrickson, Meritor, and Ridewell suspensions, covering OEM numbers 12477594, E9326, 3401388, and more. The kit includes a bushing, shims, bolts, lock nuts, and U-bolt washers, with bushing dimensions of 8.5 inches center-to-center, 4.375 inches outer diameter, and 1-inch bolt holes. Sold individually, it enhances suspension stability, supports accurate alignment, and ensures dependable performance for heavy-duty trucks.

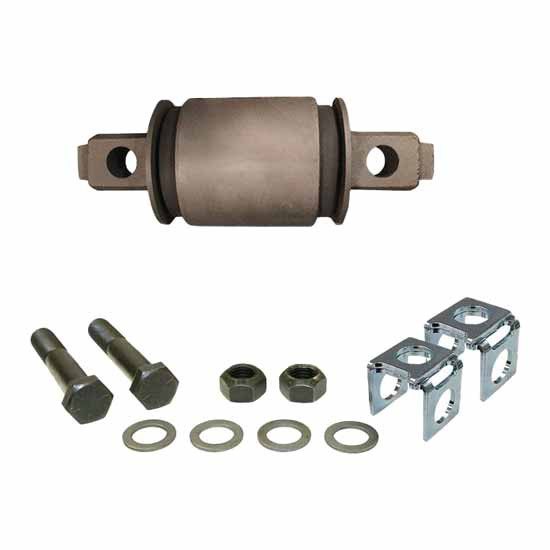

* High Quality Bar Pin Assembly* Kit Includes:
- (1) Bushing
- (2) 1/4 Inch Bar Pin Shim
- (2) 6 Inch Bar Pin Bolt, 2.5 Inch Of 1 Inch - 8 Thread
- (2) 1.46 Inch A/F Lock Nut, 1 Inch - 8 Thread, 0.840 Inch Height
- (4) U-Bolt Washers, 1.00 Inch ID, 1.625 Inch OD, 0.188 Inch Thick
* Bushing Dimensions:
- 8.5 Inch Center To Center Length
- 4.375 Inch Outer Diameter
- 1 Inch Bolt Holes
* Sold Individually
* Warranty On Bar Pin Assembly Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)**** Cross Ref # 12477594, E9326, E-9326, 3401388, 34013088, 34013-088, 34013088L, 34013-088L, 50160, 50160000, 50160-000, 1691140C91, 1685931C91, R309326
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
Fitment
** Fits Models W/ Hendrickson, Meritor & Ridewell Suspension Systems
