Freightliner Cascadia 113/125 Heat & AC Parts

Frequently Asked Questions About Freightliner Cascadia 113/125 Heat & AC Parts

What model years are these heat and AC parts compatible with?

Our heat and AC parts are designed specifically for Freightliner Cascadia 113 and 125 models from 2008-2017 (first generation) and 2018-present (new generation). Always verify your truck's OEM and model year before ordering, as there are significant differences between pre-2018 and post-2018 systems. The HVAC box design changed substantially with the new generation, making parts non-interchangeable between the two versions.

How difficult is it to replace the blower motor, and what tools do I need?

Replacing the blower motor typically takes 1-2 hours for someone with basic mechanical skills. You'll need a 7mm and 8mm socket, Phillips screwdriver, and panel removal tools. The main challenge is accessing the motor behind the dash - you'll need to remove the glove box and potentially the lower dash panel. Many customers report the hardest part is disconnecting the electrical connector in the tight space. We recommend disconnecting the battery first and taking photos of wire connections before removal.

Why is my AC not blowing cold, and which parts should I check first?

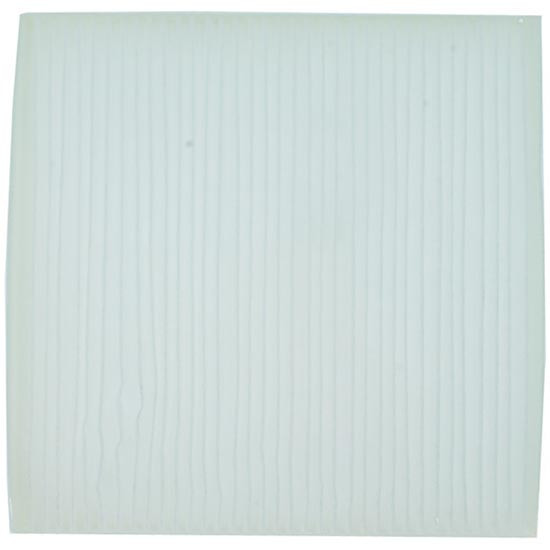

Start by checking the cabin air filter - a clogged filter is the most common cause of poor AC performance. Next, verify the compressor clutch is engaging when you turn on the AC. If the system blows air but it's not cold, you likely need refrigerant or have a leak. Common failure points include the evaporator core (check for wet carpets on passenger side), AC compressor, and expansion valve. The condenser should also be cleaned regularly, as road debris significantly reduces cooling efficiency.

What's the difference between OEM and aftermarket heater cores, and which should I choose?

OEM heater cores typically last 8-10 years and come with exact-fit guarantee, while quality aftermarket options cost 40-60% less but may require minor modifications. The main differences are in the aluminum thickness (OEM uses thicker gauge) and inlet/outlet pipe angles. Many aftermarket cores work perfectly, but verify the inlet/outlet orientation matches your truck. Red Dot and Aurora are reliable aftermarket brands that many owner-operators trust. Always check if the core includes new O-rings and mounting hardware.

How do I know if my blend door actuator is failing, and can I test it before replacing?

Common signs include clicking noises behind the dash, temperature stuck on hot or cold regardless of setting, or different temperatures from driver and passenger vents. To test, turn the ignition on (engine off) and change temperature settings - you should hear the actuator motor running for 2-3 seconds. If you hear grinding or continuous clicking, the actuator gears are likely stripped. You can also remove the actuator and manually turn the blend door shaft to verify it moves freely. Most Cascadias have 3-4 actuators controlling different zones, so identify which one is failing before ordering.
