Description

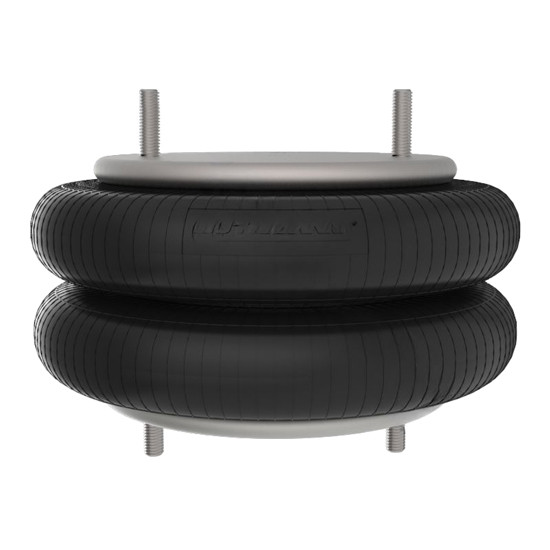

Double Convoluted Air Spring W/ Plastic Base
* High Quality Air Spring* Automann Phoenix Brand
* Double Convoluted
* Load At 80 PSI - 4720 Lbs
* Load At 100 PSI - 5900 Lbs
* Natural Frequency 102 CPM (Cycles Per Minute)
* Includes:
- (3) Top Plate Holes
- (2) Bottom Plate Holes
- Bumper
* Resistant To Oil, Lubricants, And Adverse Weather Conditions
* Brackets Not Included
* Plastic Base
* Rubber Lift Bags
* 9.50 Inch Design Height
* Top Plate
- 9.00 Inch Outer Diameter
- 6.20 Inch Center To Center Diameter
* Bottom Plate
- 9.00 Inch Outer Diameter
- 6.20 Inch Center To Center Diameter
* 4.10 Inch Minumum Height
* 12.50 Inch Maximum Height
* 12.80 Inch Maximum Diameter
* Sold Individually
* Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
* Cross Ref Numbers 64490. FD 330 22 337. W013587401. W01-358-7401. 2076095. 711954. 554789C1. 57007401. 7401. AS0014. AS-0014
Fitment
* Fits GMC Brigadier 1978 thru 1988
* Fits GMC General 1977 thru 1998
* Fits GMC Topkick 1990 thru 2015
Additional Information
Height Options: |
9 Inch |
Style Options: |
Double Convolute |
Product Type: |
Frame & Chassis |
Material Options: |
Rubber |
Rating: |
100 PSI |
Diameter Options: |
9 Inch |
Make: |
Chevrolet |
Make: |
GMC |
