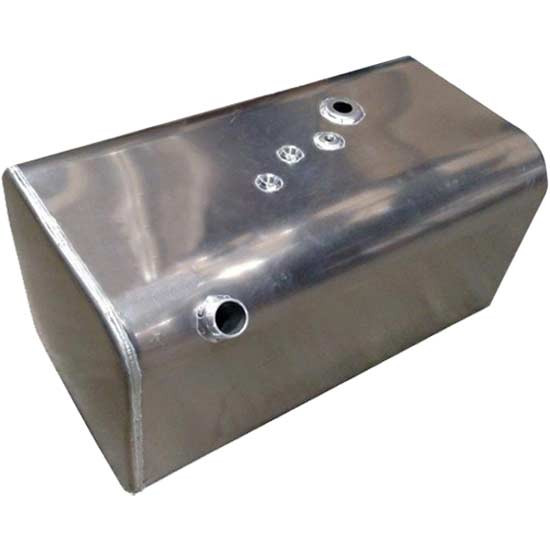

Passenger Side 52 Gallon- 19.5 X 19.5 X 35.75 Inch Aluminum Rectangular Fuel Tank- Rear Fill Fits Hino 238/258/268/338

This BESTfit Fuel Tank Is Manufactured To OE Specifications With The Same Materials As Used In Oe Manufacturing, Is Rigorously Tested Under Fmsca Regulations And Iso Certified. We're So Confident In The Quality Of This Replacement Fuel Tank We Offer A 2 Year Warranty From The Date Of Purchase.

* High Quality Fuel Tank
* 11 Gauge Aluminum

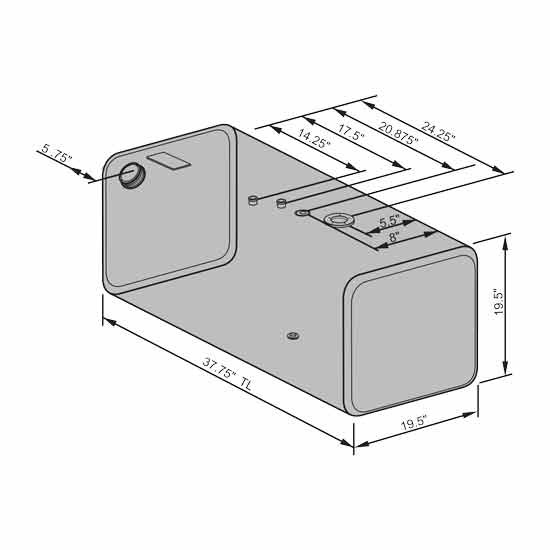

* Dimensions:
  - 19.50 Inch Height
  - 19.50 Inch Depth
  - 35.75 Inch Length Seam To Seam
  - 37.75 Inch Length Over All
* 52 Gallons
* Filler Neck - Rear Fill
  - 5.75 Inch From Rear Weld Seam
* Sending Unit Hole
  - 24.25 Inch From Rear Weld Seam
  - 5.50 Inch From Front Side
* Vent Hole
  - 0.50 Inch NPT
  - 20.875 Inch From Rear Weld Seam
  - 8.00 Inch From Front Side
* Pickup Port -
  - 17.50 Inch From Rear Weld Seam
  - 8.00 Inch From Front Side
* Return Ports -
  - 14.25 Inch From Front Weld Seam
  - 10.00 Inch Below Horizontal Weld Seam
* Caps And Fittings Sold Separately
* Has Provisions For Mounting Steps
* Welded Seams To Prevent Leakage
* CNC Laser Technology For Precision Cuts
* DOT Compliant
* Sold Individually
* Warranty On Fuel Tanks Against Defects In Workmanship & Material From Date Of Purchase

** Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model **

***High Quality Aftermarket Replacement Part (Not OEM)***

* Replaces Oe Number 77100-4601A

** This Tank Is Not Equipped With A Built-In Draw Tube ***
