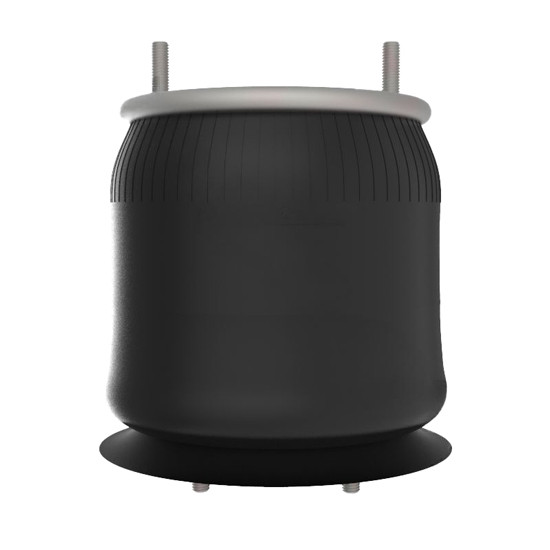

Rolling Lobe Air Spring With Plastic Base- 3 Top Plates Holes & 2 Bottom Plate Holes

* High Quality Air Spring
* Automann Phoenix Brand
* Rolling Lobe
* Load At 80 PSI - 5100 Lbs
* Load At 100 PSI - 6400 Lbs
* Natural Frequency 80 CPM (Cycles Per Minute)
* Includes:
 - (3) Top Plate Holes
 - (2) Bottom Plate Holes
 - Bumper
* Resistant To Oil, Lubricants, And Adverse Weather Conditions
* Brackets Not Included
* Plastic Base
* 8.00 Inch Design Height
* Top Plate
 - 9.00 Inch Outer Diameter
 - 6.20 Inch Center To Center Diameter
* Bottom Plate
 - 9.53 Inch Outer Diameter
 - 4.12 Inch Center To Center Diameter
* 5.50 Inch Minimum Height
* 14.40 Inch Maximum Height
* 11.40 Inch Maximum Diameter
* Sold Individually
* Warranty On Air Springs Against Defects In Workmanship & Material From Date Of Purchase

* Cross Ref Numbers 64752. 99-12P786. 9551. W013589551. W01-358-9551. 01808670

** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **

* Please Verify Mounting Hole Pattern, Some Year Models Can Have Multiple Offerings.
